Introduction

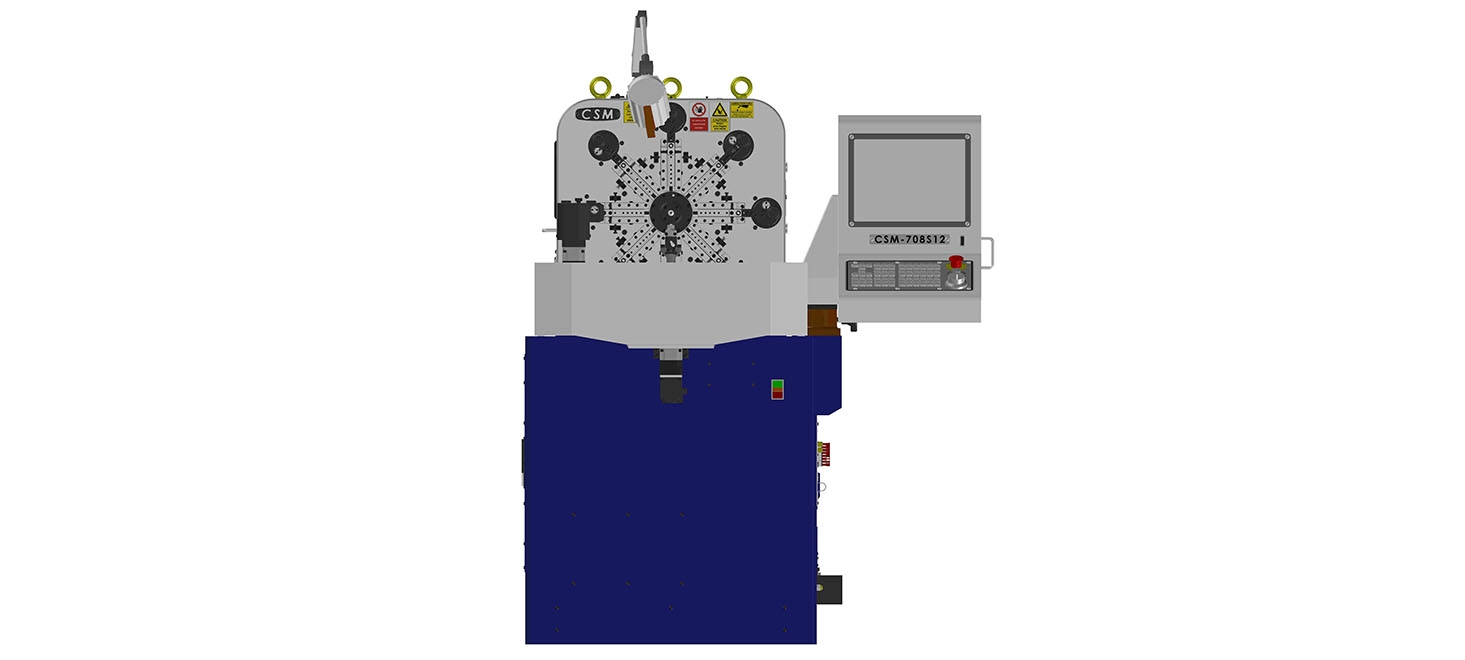

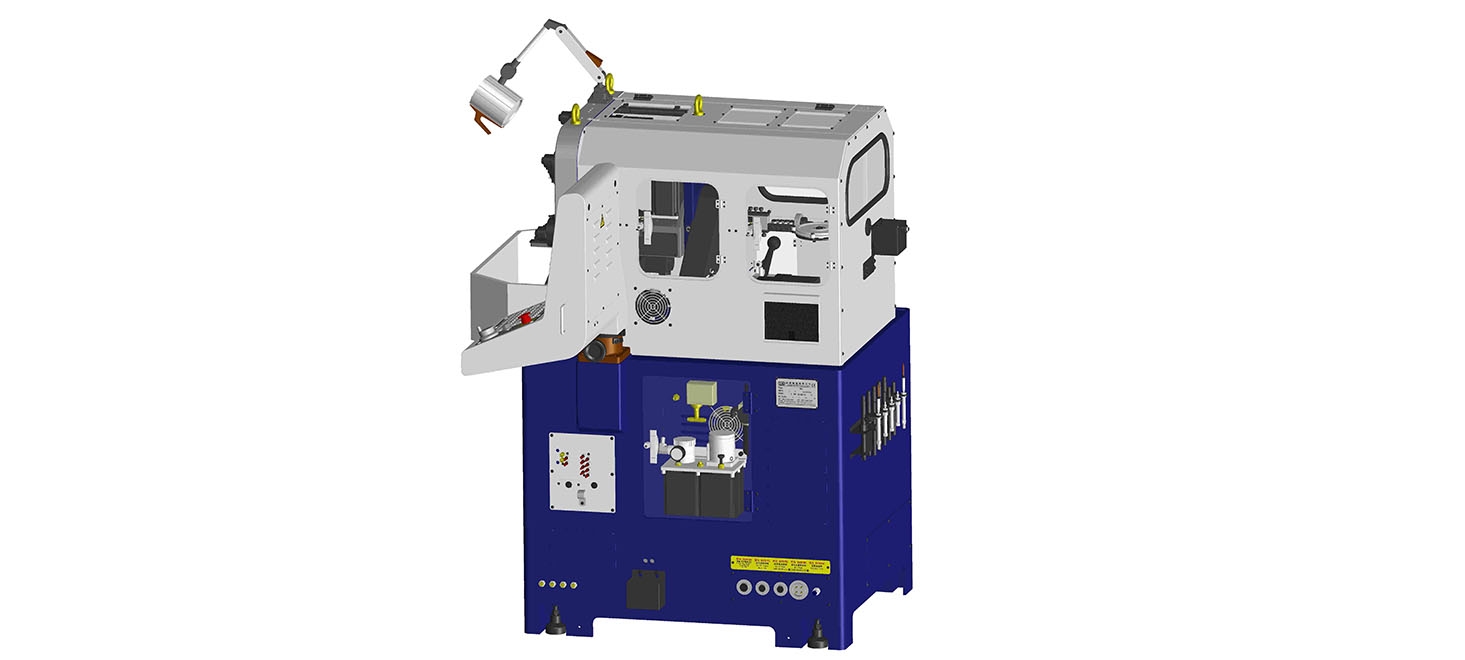

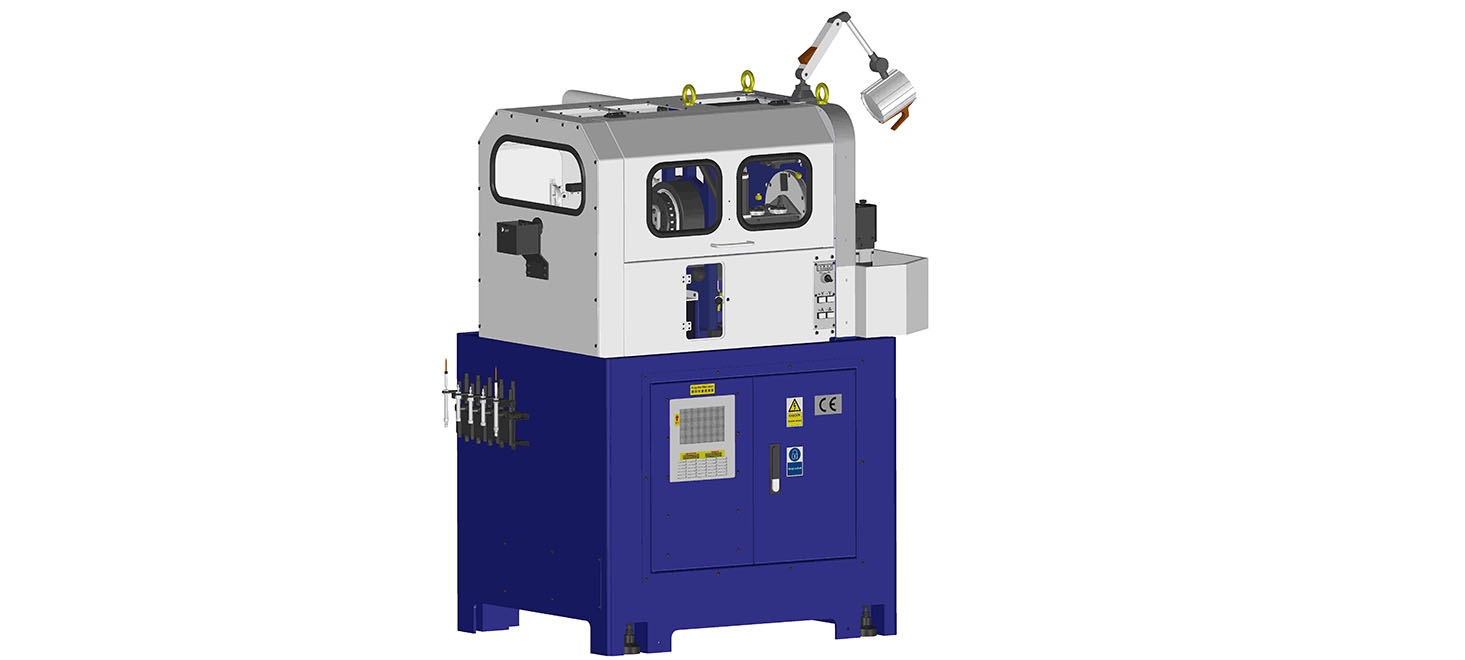

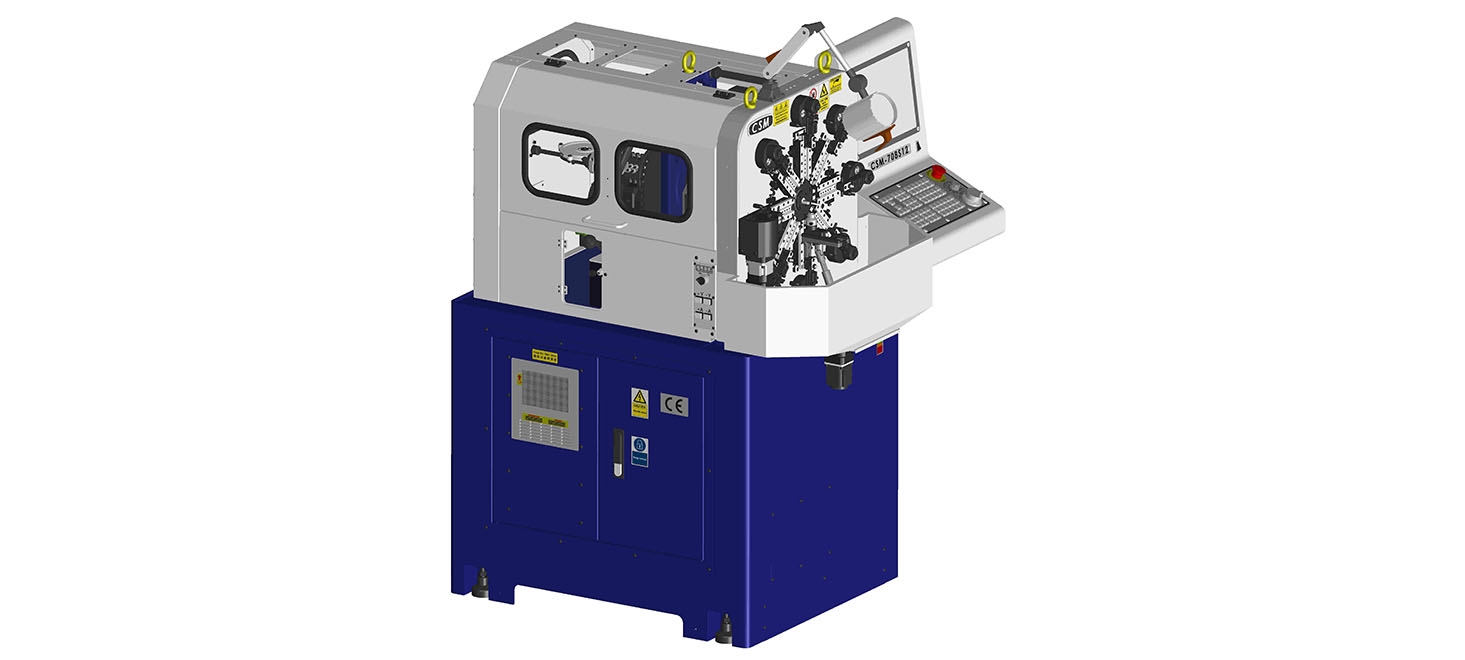

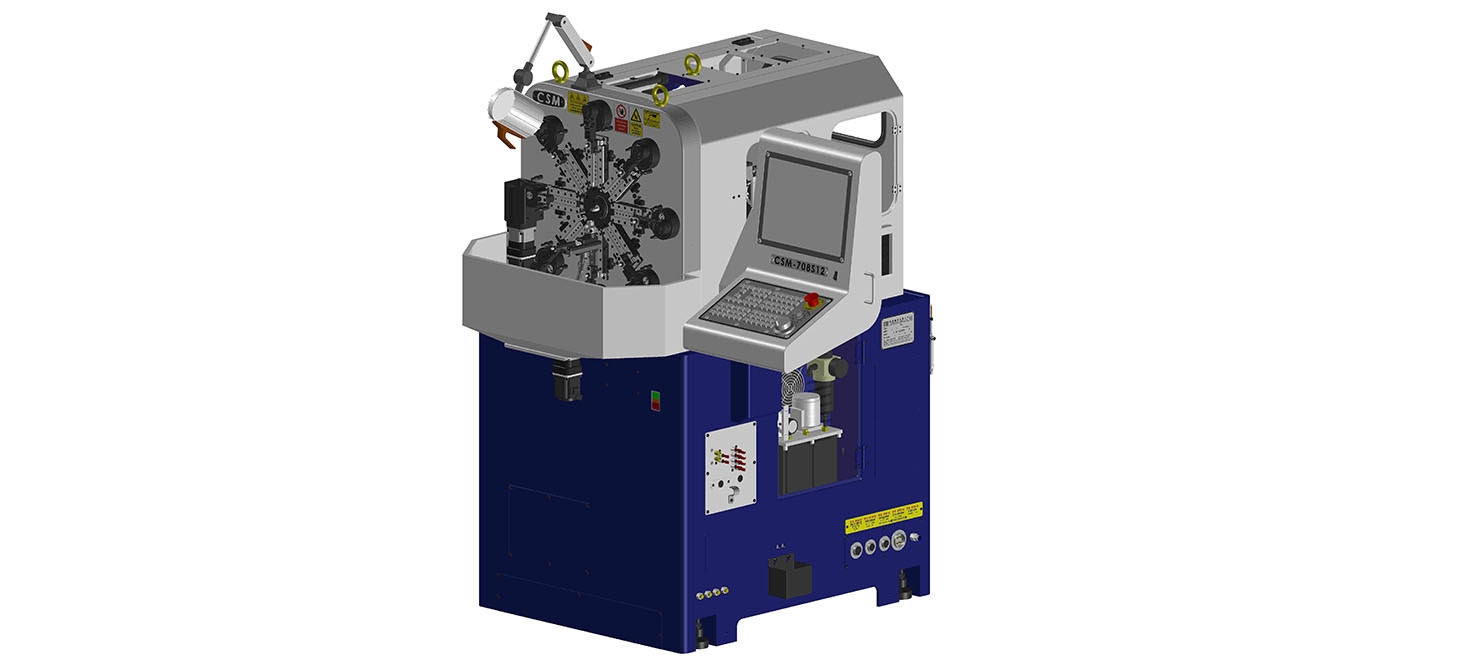

CSM-708S12 includes all advantages from present machines. The long term Production, operation and maintaining easily are the most important issues to Our improvement.
Feature
We developed a brilliant lubricant circulation system helps prevent oil leaking,And the Clean-Body design allows you to keep the bottom part of the machine Clear easily. Furthermore, the new design wire feeding and transmission devices Allow for easily assembling and maintaining.
Best efforts for you are the air conditioned cooling system and the Dust-Isolated Circulation will keep the best performance for the electronic system.
We enhanced our machine structure to sustain high accuracy for long term Production.
| Working Range | Basic Wire Diameter | 0.13mm~0.8mm (Rotary wire diameter:0.3~0.8mm) |
| Working Ability | O.D. MAX | 20mm |
| Leg Length | 20mm | |
| Forming(1-8) Axis | Range of Angle Value | 1-2000 |
| Max. Rotation Value | 90 RPM | |
| Feeding Axis | Range of Feeding Value | 0.01-99999.99mm |
| Max. Feeding Speed | 90 M/min | |
| Rotary Quill Axis | Range of Angle Value | 1-4000 |
| Servo Spinner Axis | Range of Angle Value | 1~ +/-1600 |
| Control System | Program Storage | 5000 programs |
| Number of Axes | Basic axis: 11 (Feed, Wire rotation, Quill rotation, Slide x8) | |
| Power Supply | Power Supply | 200/220 3ↀ 50/60Hz 4.5KVA |
| Motor Capacity | 0.4KW×9,1.0KW×1,1.2KW×1 | |
| Machine Scale | Dimension(W*H*L) | 129(W)×159(H)×89(L)mm |
| Weight | 690KG |
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
